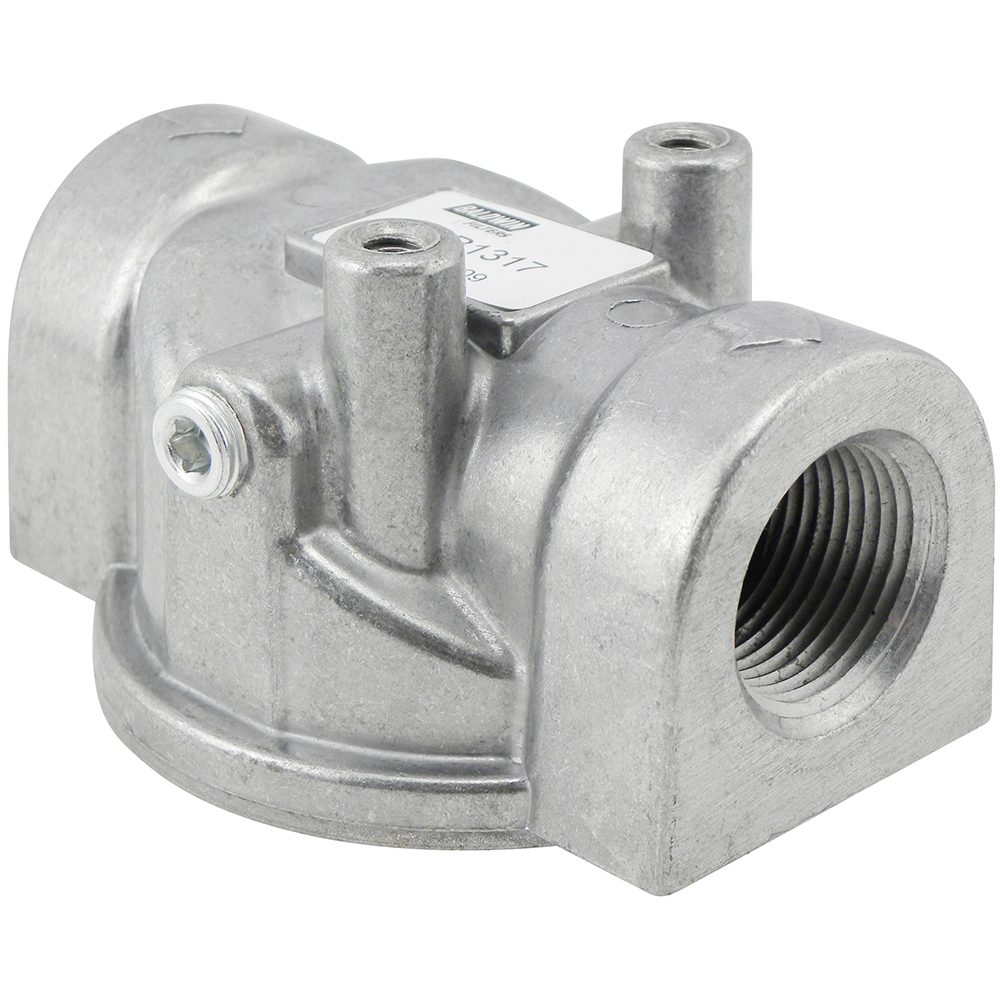

Hydraulic Filter Base - فلتر بالدوين
- Part Number: OB1317
- Notes: Has [2] 1/8 In. NPT indicator ports that are designed to accept the VG1325 vacuum gauge.;Top-mount bracket holes can be used for easy installation.;For use on suction side.
- Fits Inside:
- Use With: BT839, BT839-10, BT8420
- Contains: 5 PSID By-Pass Valve;Threaded Stud: 1-12
- Fits:
- Replaces:
- Size:
- Size MM:
- Thread:
- Per Inch:
- Od #1: 3 3/4
- Od #1 MM: 95.3
- Rem #1:
- Od #2:
- Od #2 MM:
- Id #1:
- Id #1 MM:
- Rem #2:
- Id #2:
- Id #2 MM:
- Inlet: 3/4-14 NPT
- Outlet: 3/4-14 NPT
- Length: 3
- Length MM: 76.2
- A GSKT:
- F GSKT:
- I GSKT:
- O GSKT:
- End Seals:
- Grommets:
- O Ring:
- Spring:
- Pan Gasket:
- Related To:
- Base Number: 1317
- UPC Code: 791440011878
- Country Code: CN
- Item Descriprion: HEAVY DUTY HYDRAULIC HOUSING فلتر مولد
