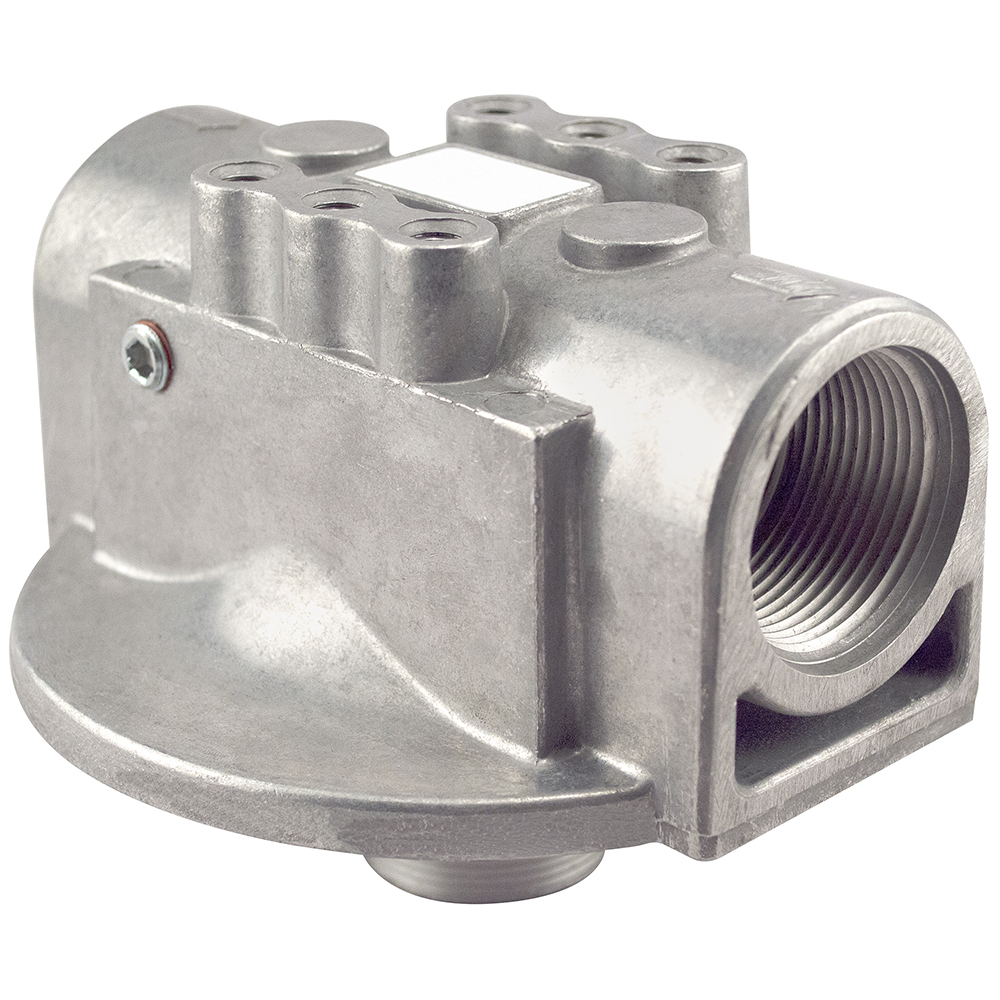

Hydraulic Filter Base - فلتر بالدوين
- Part Number: OB1314
- Notes: This base requires the use of the G286-C gasket (furnished with BT387, BT387-10, BT388, BT388-10 and BT8424-MPG, optional on others) for installation of the filters listed below.;For use on the return side.
- Fits Inside:
- Use With: BT287, BT287-10, BT287-3, BT351, BT387, BT387-10, BT388, BT388-10, BT389, BT389-10, B7011, BT8307-MPG, BT8308-MPG, BT8308-MPG KIT, BT8309-MPG, BT8310-MPG, BT8368, BT8421-MPG, BT8422-MPG, BT8423, BT8423
- Contains: 25 PSID By-Pass Valve;Threaded Stud: 1 1/2-16;Threaded Stud: 1 1/4-11 BSP
- Fits:
- Replaces:
- Size:
- Size MM:
- Thread:
- Per Inch:
- Od #1: 5 1/2
- Od #1 MM: 139.7
- Rem #1:
- Od #2:
- Od #2 MM:
- Id #1:
- Id #1 MM:
- Rem #2:
- Id #2:
- Id #2 MM:
- Inlet: 1 1/4 In. NPT
- Outlet: 1 1/4 In. NPT
- Length: 5 5/16
- Length MM: 134.9
- A GSKT:
- F GSKT:
- I GSKT:
- O GSKT:
- End Seals:
- Grommets:
- O Ring:
- Spring:
- Pan Gasket:
- Related To:
- Base Number: 1314
- UPC Code: 791440011847
- Country Code: IN
- Item Descriprion: HEAVY DUTY HYDRAULIC HOUSING فلتر مولد
